      NOISESTOP



Location: Home > Product > NOISESTOP







      Isolated Wall Hangers

      NOISESTOP® isolated wall WB-2-14 is a high performance isolated wall bracket made from cold rolled steel sheet and high resilient pad.


      WB-2-14 has very high loading, low resonance frequency, and high damping ratio features, made it a perfect solution to reduce sudden structural vibration.








      Product Introduction
      NOISESTOP® isolated wall WB-2-14 is a high performance isolated wall bracket made from cold rolled steel sheet and high resilient pad.
      WB-2-14 has very high loading, low resonance frequency, and high damping ratio features, made it a perfect solution to reduce sudden structural vibration.










      Application


    2. Bedroom

    3. Home theatre

    4. Conference Room

    5. Multipurpose Hall

    6. Recording Studio

    7. Office, etc.



        Features


      1. Low Cost

      2. Easy to Install.

      3. Fire Stop Safety Design

      4. Resistance to Corrosion

        Acoustic Performance


        Tested in accordance with ASTM E90-09







        Item


        Test Standard



        Test Result





        STC



        ASTM E90-09



        60





        Rw



        Test Standard



        60 dB

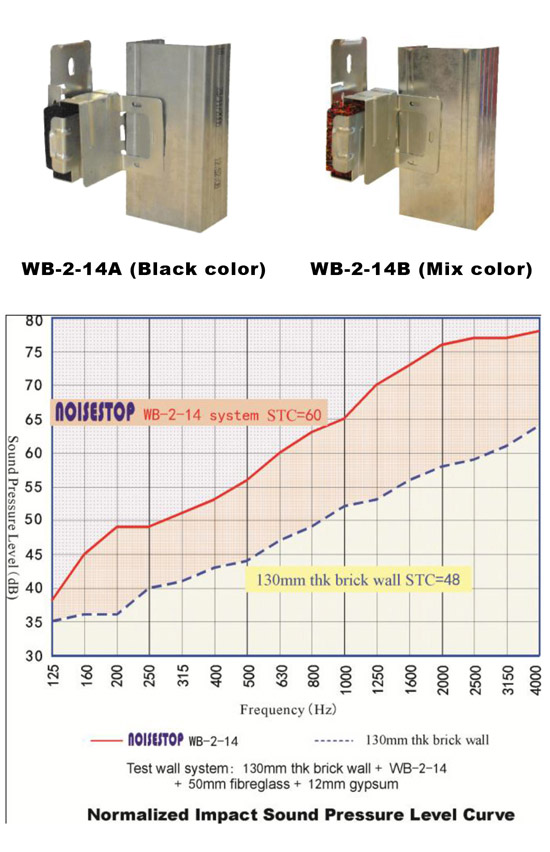

        Test data of STC=60 result







        Product


        Impact Sound Pressure Level (dB)





        125
        Hz



        250
        Hz



        500
        Hz



        1k
        Hz



        2k
        Hz



        4k
        Hz





        WB-2-14



        41



        50



        57



        65



        74



        78

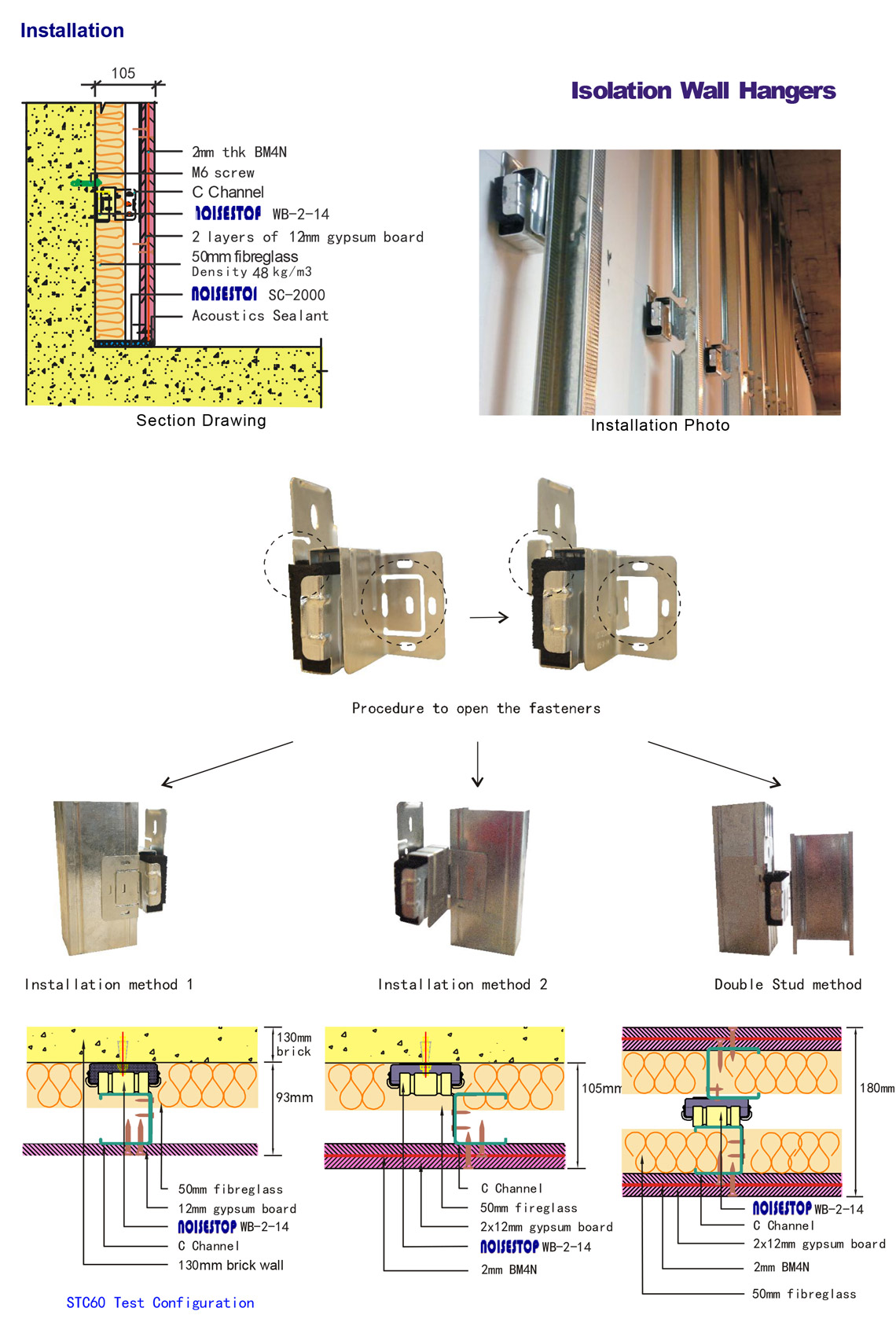

        Suggested Layout








        Product



        Suggest centre to centre distance





        WB-2-14A



        1000x600mm, 1000x800mm





        WB-2-14B



        600x800mm, 800x800mm


        Product Specification








        Model



        Size



        Colour





        WB-2-14A



        75x70x110mm



        Silver & Black





        WB-2-14B



        75x70x110mm



        Silver & Mix
