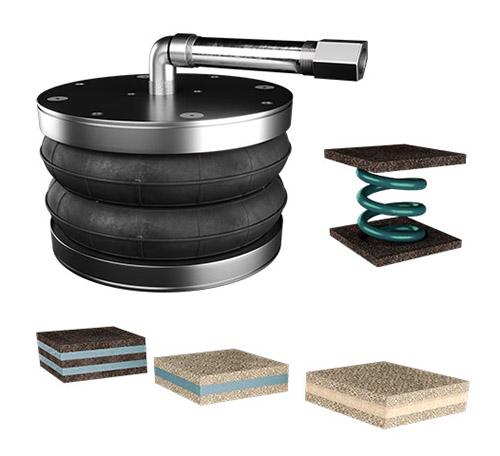

CDM Stravitec offers three types of bearings:

• Stravimech Bearing-Air, isolation systems intended for isolation of very low frequent vibrations
• Stravimech Bearing-P, isolation resilient pads
• Stravimech Bearing-S, isolation springs

Main Benefits

• Temperature differences: significant stiffening effect at the glazing temperature around -35°C; significant softening effect when reaching temperatures around and above +100°C; in-between these extremes, the material characteristics can be considered fairly constant
• Excellent electrical resistance
• Good resistance to most oils and solvents (details available on request)
• Very low natural frequency (< 3 Hz)
• Frequency can be tuned to expected performance
• Frictionless movement
• Height regulation possible
• Wide range of Stravimech Bearing systems available to cope with different requirements

Design Requirements

• Weight and load distribution of the machine to be supported on Stravimech Bearing
• Available space for the supports (surface and height)
• Excitation frequency of the machine to be supported
• The required vibration isolation performance or natural frequency of the solution
• Specific conditions
• Location of center of gravity of the machine to be isolated
• Support surface layout

*Previously known as CDM-MACHINE-PAD & CDM-AIR
