    1. CDM Stravilink

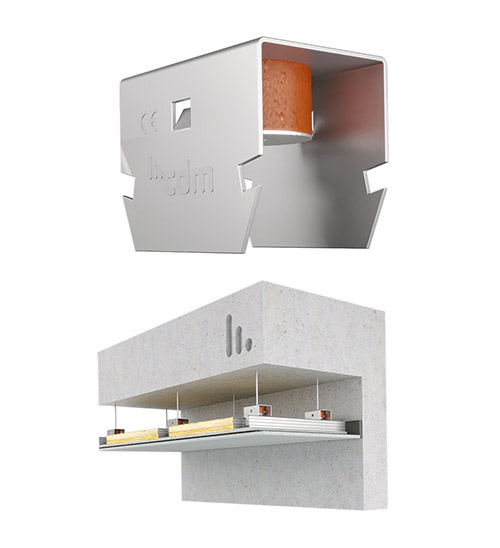

      CDM Stravilink CC60

      Stravilink CC40* and Stravilink CC60** elastomer acoustic suspension hangers have been designed to suspend acoustic ceilings using 60 mm profile (or CDM Stravitec PROFILE-C60/27-2000) or 47 mm standard profile (or CDM Stravitec PROFILE-C47/17-3000), improving airborne isolation performance.

      Hangers can be ordered in two different stiffnesses:

      • Stravilink CC60-150/Stravilink CC40-150: 10-20 kg per hanger
      • Stravilink CC60-350/Stravilink CC40-350: 20-45 kg per hanger

      Main Benefits

      • Cost-effective
      • Quick and easy to install
      • Natural frequency between 12Hz and 18Hz
      • System comes optional with an elastomer washer to allow direct fixation to the ceiling
      • Variable void depths are achievable (Stravilink CC40 hanger depth is 40 mm; Stravilink CC60 hanger depth is 47 mm)
      • Steel elements are zinc plated
      • For optimum results resilient perimeter strips should be used to provide lateral isolation between the suspended ceiling and adjacent walls. A wide range of roll sizes are available

      Design Requirements

      • Weight and construction of the supported ceiling (determines the type of hanger)
      • Required void between the supporting soffit and the suspended ceiling

      *Previously known as CDM-CC60
