CDM Stravilink PSJ

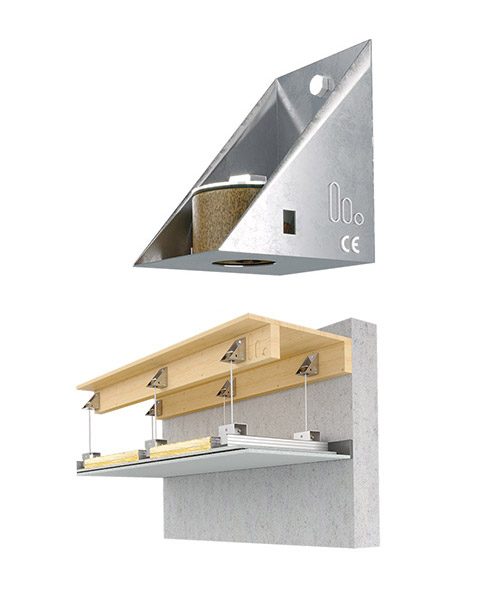

Stravilink PSJ* elastomer isolation joist hangers are designed to support suspended ceiling systems off joist structural floors, optimizing sound insulation between vertically stacked rooms.
Standard elastomer hangers are:
- Stravilink PSJ-150: 10-20 kg per hanger
- Stravilink PSJ-350: 20-45 kg per hanger
Main Benefits
- Natural frequency at design load between 12Hz and 18Hz
- Can be used to hang down most suspended ceiling systems
- Steel elements are zinc plated
- Bespoke hangers can be manufactured to meet specific loading and natural frequency requirements on request
- System comes with perimeter isolation strip to isolate the perimeter of the ceiling from the surrounding structures
Design Requirements
- Weight and construction of the supported ceiling (determine the type of hanger)
- Weight of any elements supported off the suspended ceiling or directly off a hanger
- Required void between the supporting soffit and the suspended ceiling
*Previously known as CDM-PSJ
