Main Benefits

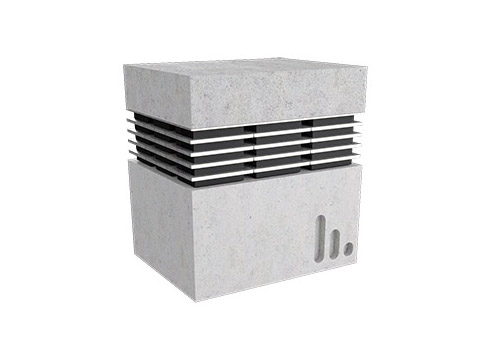

• VHS bearings provide the same acoustic performance as standard elastomer bearings which are more than twice their size; thereby having a significant impact on a buildings structural cost
• They are quick and easy to install, thereby minimizing associated labor costs. Top and bottom plates can be added to suit the specific method of installation
• Our engineers will design a configuration of VHS to best suit the structural element requiring support
• If required VHS bearings can be designed to be replaced one at a time using our “frozen bearing technique”

Design Requirements

• Natural frequency required
• Permanent and variable loads
• Lateral and turning forces

*Previously known as CDM-VHS

Frozen Bearing Technology

Frozen Bearing Technology (FBT) technique allows us to replace elastomer bearings such as Stravibase VHS without disturbing the building’s structure; which may become necessary if there is a significant change in the imposed load.
